Pavo35 Brushless Whoop Frame is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 400g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Standard Action Cams, guaranteeing it is the smoothest, most powerful, and most responsive flight among all 3.5" cinewhoops.

Bullet Points

With a 9:4:1 Trust-to-weight Ratio, it is a frame that can be compared to the power of a 5" quad. 12 minutes of flight time ensures the pilot flies and captures maximum footage in one go.
The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
Rocket engine-inspired duct design improves lateral stability and increases thrust by 400g compared to without a propeller guard, giving the Pavo35 stronger power and a better flying feel.
The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.

Specifications

Item: Pavo35 Brushless Whoop Frame
Wheelbase: 148mm
Top Plate: 3mm T700 carbon fiber
Base Plate: 1.5mm T700 carbon fiber
Gimbal Carbon Plate: 2mm T700 carbon fiber
Column: 7075 aluminum alloy CNC
Battery Holder: 7075 aluminum alloy CNC
Whoop Duct: PC injection-molded translucent gray
Whoop Duct Diameter: 92mm
Battery Connector: Fixed XT60
Camera Installation Size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX Antenna Mounting Hole Size: 4mm
Flight controller Mounting Hole Size: 25.5*25.5mm
Motor Mounting Hole Size: 4*M2 EQS ø12mm

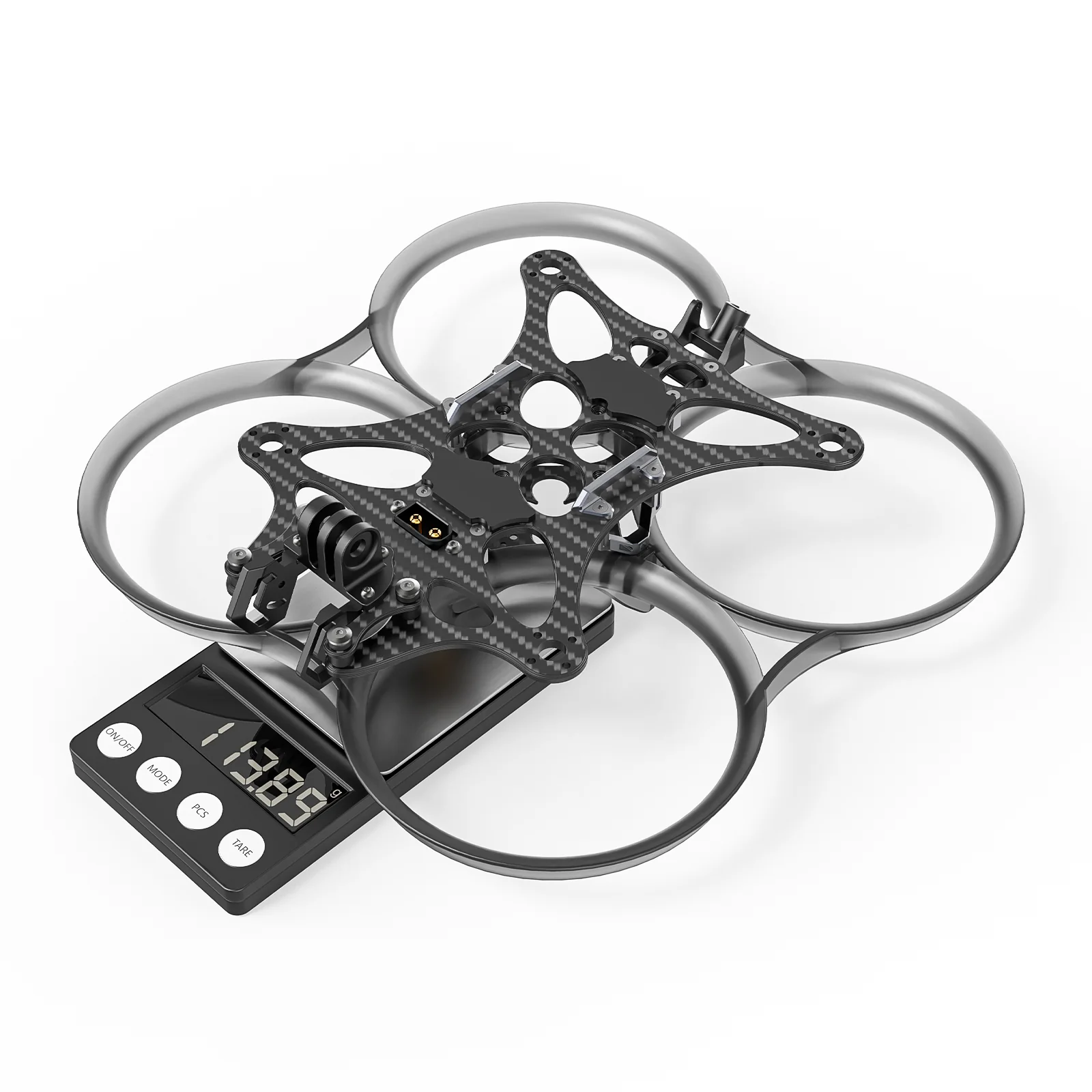

Weight: 113.9g

Pavo35 Frame Kit

Pavo35 whoop duct can enhance an additional 400g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breeze, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.

Pavo35 Brushless Whoop Frame

The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 400g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo35 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.

Pavo35 Brushless Whoop Frame

The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material - 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.

Pavo35 Brushless Whoop Frame

Shine in Night Cruise

The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 750 mm*4 mm. Pavo35 Brushless Whoop Quadcopter offers the remarkable feature of controlling the onboard COB light strip via a radio transmitter. This convenient functionality allows for flexible control of the light strip's brightness and on/off status. Since light pollution should be eliminated when shooting videos, COB needs to be turned off. However, COB can be turned back on when racing and freestyle, enhance the ambiance, and provide navigation indicators, empowering pilots to seamlessly switch between various scenes anytime such as entertainment, sports, or film creation, catering to their specific needs.

ND Filter for DJI O3 Camera

BETAFPV ND Filter for DJI O3 Camera, UV, CPL, ND8, ND16, ND32, is specifically designed for the Pavo35, Pavo25 V2, Pavo20, and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.

Pavo Series FPV Gimbal Mount

Upgrade your aerial photography experience with our Gimbal Mount. It offers seamless integration, precise control, and unparalleled stability, ensuring smooth footage capture. Compatible with the Pavo25 V2 and Pavo35, this mount provides ultimate precision and versatility for your camera.

Recommend Parts

FC: F722 35A AIO V2
Motor: LAVA Series 2006 Brushless Motors
Propellers: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
Battery: LAVA Series 6S 1100mAh LiPo Battery
Battery Strap: Pavo Series Battery Strap(2PCS)
Filter: BETAFPV ND Filter for DJI O3 Camera
VTX: DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit, RUNCAM Link, Analog

FAQ

Click to watch the installation guide video for the DJI O3 Air Unit on Pavo35

Package

Item: Pavo35 Brushless Whoop Duct

1 * Whoop Duct
1 * Service Card

Item: Pavo Series FPV Gimbal Mount

1 * Gimbal Carbon Plate
1 * Camera Mounting Bracket
1 * Left Camera Mounting Bracket
1 * Right Camera Mounting Bracket
4 * Gimbal Damping Balls
4 * Gimbal Screws
2 * Inner Hex Flat Head Screw M25
2 * Inner Hex Flat Head Screw M28
1 * Inner Hex Flat Head Screw M518
1 * Anti-loosening Nut M5*5

Item: Pavo35 Brushless Whoop Frame

1 * Top Plate
1 * Gimbal Carbon Plate
1 * Base Plate
2 * Battery Tie Holder
4 * Y-shaped Aluminum Alloy Bracket
1 * Whoop Duct
1 * Receiver Holder
1 * Amass XT60EW-M Socket (Black)
2 * Battery Anti-slip Mat
1 * Battery Tie
4 * Flight Controller Amping Ball
4 * Pan/Tilt Vibration Reduction Ball
4 * Pan/Tilt Screws
2 * Inner Hex Flat Head Screw M2.5*5
10 * Inner Hex Flat Head Screw M2*6
4 * Inner Hex Flat Head Screw M2*8
4 * Inner Hex Flat Head Screw M2*10
4 * Nylon nut M2
1 * Accessory package
1 * Service Card
1 * Frame Manual
